More ggplot

<br>
<br>
.right-panel[

# More ggplot
## Dr. Mine Dogucu
]

---

]

.panel-name[English]
- Using the `penguins` data,
- Map `bill depth` to x-axis, `bill length` to y-axis, `species` to shape and color.
- Add a layer of points and set the size of the points to 4.
]

```r
ggplot(penguins,
       aes(x = bill_depth_mm,
           y = bill_length_mm,
           shape = species,
           color = species)) +
  geom_point(size = 4)
```

]

---
class: middle

## Labs

]

.panel-name[English]
- Using the `penguins` data,
- Map `bill depth` to x-axis, `bill length` to y-axis, `species` to shape.
- Add a layer of points and set the size of the points to 4.

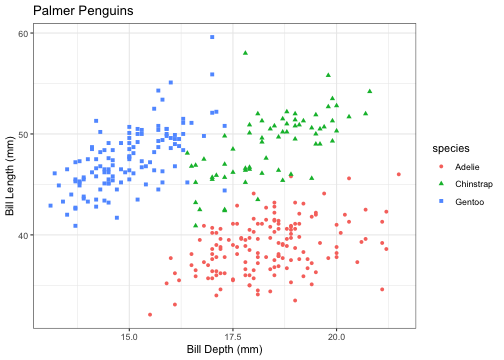

- .highlight-text[Add labels to x-axis (Bill Depth(mm)), y-axis (Bill Length(mm)), and the title of the plot (Palmer Penguins).]

```r
ggplot(penguins,
       aes(x = bill_depth_mm,
           y = bill_length_mm,
           shape = species,
           color = species)) +
  geom_point(size = 4) +
* labs(x = "Bill Depth (mm)",
*      y = "Bill Length (mm)",
*      title = "Palmer Penguins")
```

]

---

```r
ggplot(penguins,
       aes(x = bill_depth_mm,
           y = bill_length_mm,
           shape = species,
           color = species)) +
  geom_point() +
  labs(x = "Bill Depth (mm)",
       y = "Bill Length (mm)",
       title = "Palmer Penguins") +
* theme_bw()
```

]

]

---

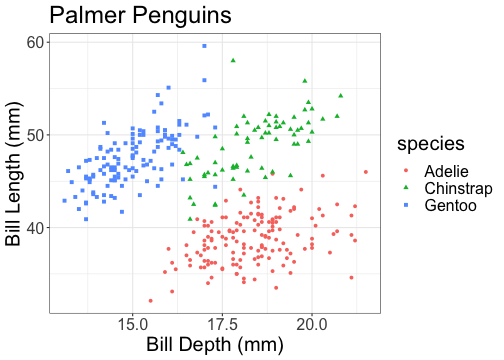

## Themes

]

]

]

]

]

]
]

---

]

![](03c-more-ggplot_files/figure-html/unnamed-chunk-15-1.png)
]

---

```r
?theme
```

---

```r
ggplot(penguins,
       aes(x = bill_depth_mm,
           y = bill_length_mm,
           shape = species,
           color = species)) +
  geom_point(size = 4) +
* facet_grid(.~species)
```

]

.right-panel[
<img src="03c-more-ggplot_files/figure-html/unnamed-chunk-18-1.png" style="display: block; margin: auto;" />
]

---

```r
ggplot(penguins,
       aes(x = bill_depth_mm,
           y = bill_length_mm,
           shape = species,
           color = species)) +
  geom_point(size = 4) +
* facet_grid(species~.)
```

]

.right-panel[
<img src="03c-more-ggplot_files/figure-html/unnamed-chunk-20-1.png" style="display: block; margin: auto;" />
]

---

`library(scales)`

```r
ggplot(penguins,
       aes(x = bill_depth_mm,
           y = bill_length_mm,
           shape = species,
           color = species)) +
  geom_point(size = 4) +
  scale_x_continuous(breaks = breaks_width(2))
```

]

.right-panel[
<img src="03c-more-ggplot_files/figure-html/unnamed-chunk-22-1.png" style="display: block; margin: auto;" />
]

---

`library(scales)`

```r
ggplot(penguins,
       aes(x = bill_depth_mm,
           y = bill_length_mm,
           shape = species,
           color = species)) +
  geom_point(size = 4) +
  scale_x_continuous(breaks = c(18.5, 20))
```

]

.right-panel[
<img src="03c-more-ggplot_files/figure-html/unnamed-chunk-24-1.png" style="display: block; margin: auto;" />
]

---

`library(scales)`

```r
ggplot(penguins,
       aes(x = bill_depth_mm,
           y = bill_length_mm,
           shape = species,
           color = species)) +
  geom_point(size = 4) +
  scale_x_continuous(breaks = c(18.5, 20)) +
  scale_color_manual(values = c("firebrick",
                                "deepskyblue4",
                                "goldenrod"))
```

]

.right-panel[
<img src="03c-more-ggplot_files/figure-html/unnamed-chunk-26-1.png" style="display: block; margin: auto;" />
]

Check out [the ggplot flipbook](https://evamaerey.github.io/ggplot_flipbook/ggplot_flipbook_xaringan.html#1) for some inspiration.
